ASPARAS G4D MAX

HomeProducts...ASPARAS G4D MAX

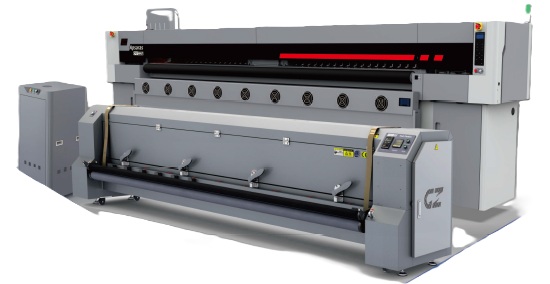

ASPARAS G4D MAX

ASPARAS G4D MAX

Use-friendly Plate & Capping Station

Adjustable head mounting plate for quick setup and high precision with easy calibration;
Auto capping& wiping easy for head maintenance.

Continuous Pinch Rollers & Grooving Anti-Wrinkle Platen
Interlinked pinch rollers with Teflon coated rollers ensure smooth feeding of fabric; Grooving platen and post roller ensure wrinkle free paper movement.

Flexible Segmentation Cutting System
9 sets magnetic hot knife for easy cutting at assigned position, ideal solution for banner application.

Eco friendly design and equipment collocation
Carriage sides& Back Cover vacuum fan and sponge to ensure dust free in working area; Separated smoke filter to ensure clear working environment for people.

Categories: , Product ID: 3935

Description

Item Specification
Model Apsaras G4D MAX
Print Head 4 x Epson I3200 A1 Print Heads
Ink High Density Sublimation Ink Certificated by OEKO TEXT with “ECO PASSPORT”
Media Type Wall Fabric, Flag, Transfer Paper(45gsm+) etc
Ink Supply System 3L Bulk ink supply system with ink cartridge
Drying System 7.2KW intelligent dryer
Software FlexiPRINT/lnedit NeoStampa(Optional) … +GZ Printer Manager
Data Interface External: USB3.0; Internal: Fiber Optical
Working Environment Temp.18°C-30°C, Humidity:35%-65%
Power Single phase, 50Hz/AC, 220V±10%; Printer: A+ IR Dryer:
Printing Speed
Draft 360x1800dpi 110m2/h
Production 720x1200dpi 82m2/h
High-res 360x1800dpi 64m2/h
Photo 720x1200dpi 55m2/h


Data Interface External: Ethernet; Internal: Fiber Optical
Working Environment Temperature: 18℃~30℃, Humidity: 35%~65%
Software Ergosoft + GZ Printer Manager
Power Requirement Single-phase, 50/AC 220V±10%, 35A (Printer) + 72A (IR Dryer)
Packed/ Installed Size/G.W/N.W 481Omm*1070mm*1870mm/
3.2M COLOR FIXATION WITH FILTER

Model                                                                  F3201
Sublimate Speed                                                150m/h
Feeding System                                                  Adjustable guide shaft to ensure same tightness for both ends
Taking Up System                                               Intelligent frequency conversion system with air shaft
Working Temperature                                          180°C-280°C with Ai intelligent temperature control
Power                                                                  380V, 12.5KW
Packed Size                                                        Heater:4480mmx720mmx1150mm, Filter:880mmx 820mmx 190mm
Installed Size                                                       Heater:4040mmx1050mmx980mm, Filter:57mmx 530mmx 160mm
G.W/N.W                                                             Heater+ Filter: 794kgs+220kgs/ 450kgs+ 171 kgs
